What is the difference between Wye and Open Delta power

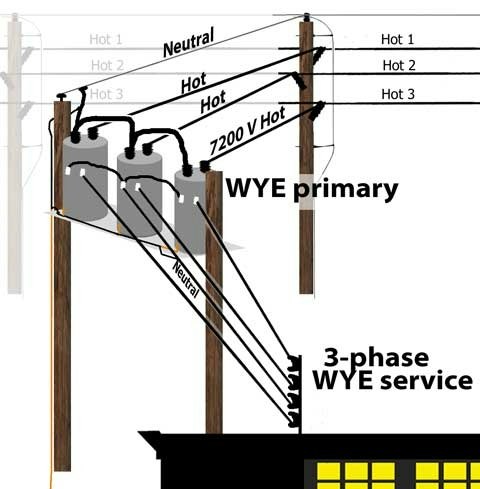

Wye Power (3-Pole Transformer)
Wye configuration is the most common industrial power source. It uses three transformers or windings to produce three stable power legs, typically at 208 V, 240 V, or 480 V (most common).
Each phase is evenly balanced, providing a stable voltage reference that works well for CNC control systems and precision electronics.

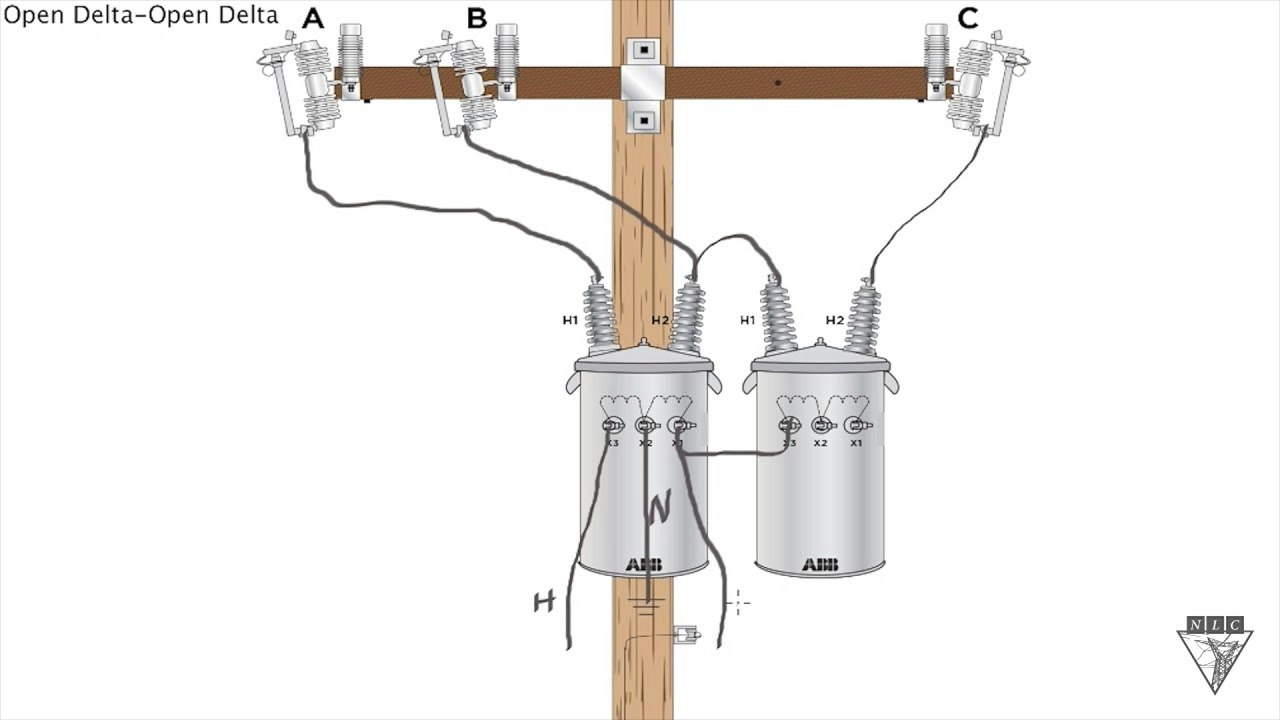

Open Delta Power (2-Pole Transformer)
Open Delta systems use only two transformers to create three-phase power. This arrangement produces three legs: two normal 120 V legs and one high leg, often called the “stinger leg.” The high leg can measure between 208 V and 240 V to ground.
Rural electric utilities often use this setup for its flexibility, but the stinger leg’s voltage can fluctuate significantly, which may cause instability in sensitive control circuits.
Anderson Configuration Recommendation
For Anderson and Giben machines, the high (stinger) leg should always be connected to L3.
L1 and L2 supply the PC and controller, which require the most stable power possible. If the stinger leg is connected to L1 or L2, the system may experience controller faults, random errors, or communication drops caused by voltage variations.
Transformer Considerations
If the shop’s incoming power is Open Delta, a special converter transformer should be installed to convert Open Delta to Wye. This stabilizes all three phases and provides the balanced power that modern CNC control systems require for reliable operation.
Machine Voltage
Anderson and Giben machines are designed for 480 V three-phase power and typically use a step-down isolation transformer to obtain the correct internal control voltage.
All installation work should be performed by a qualified electrician, following both local electrical codes and the machine’s electrical specifications.
