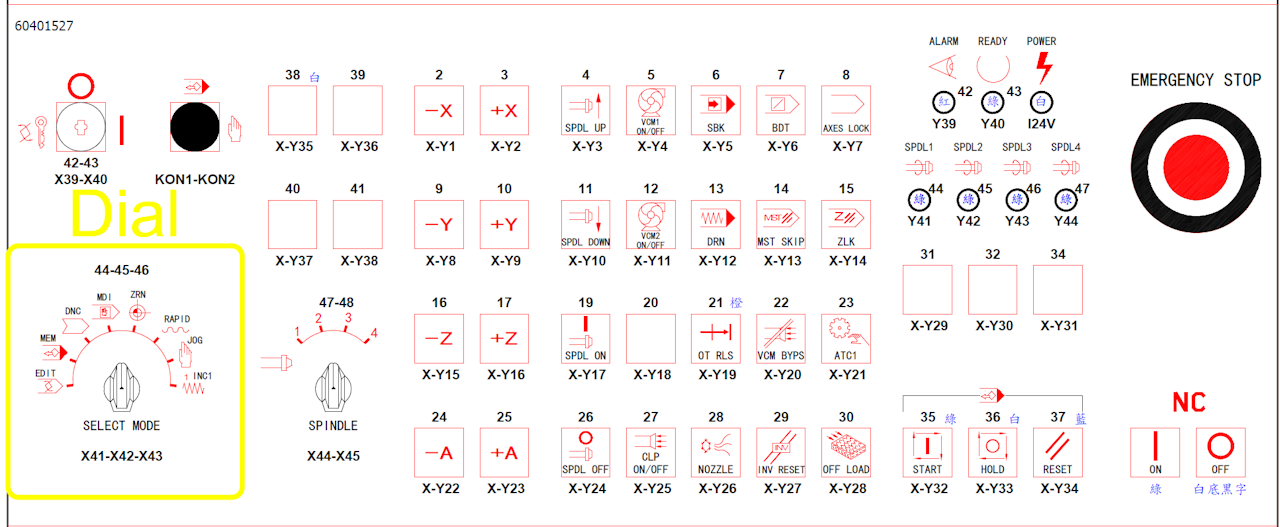

Mode Select Dial

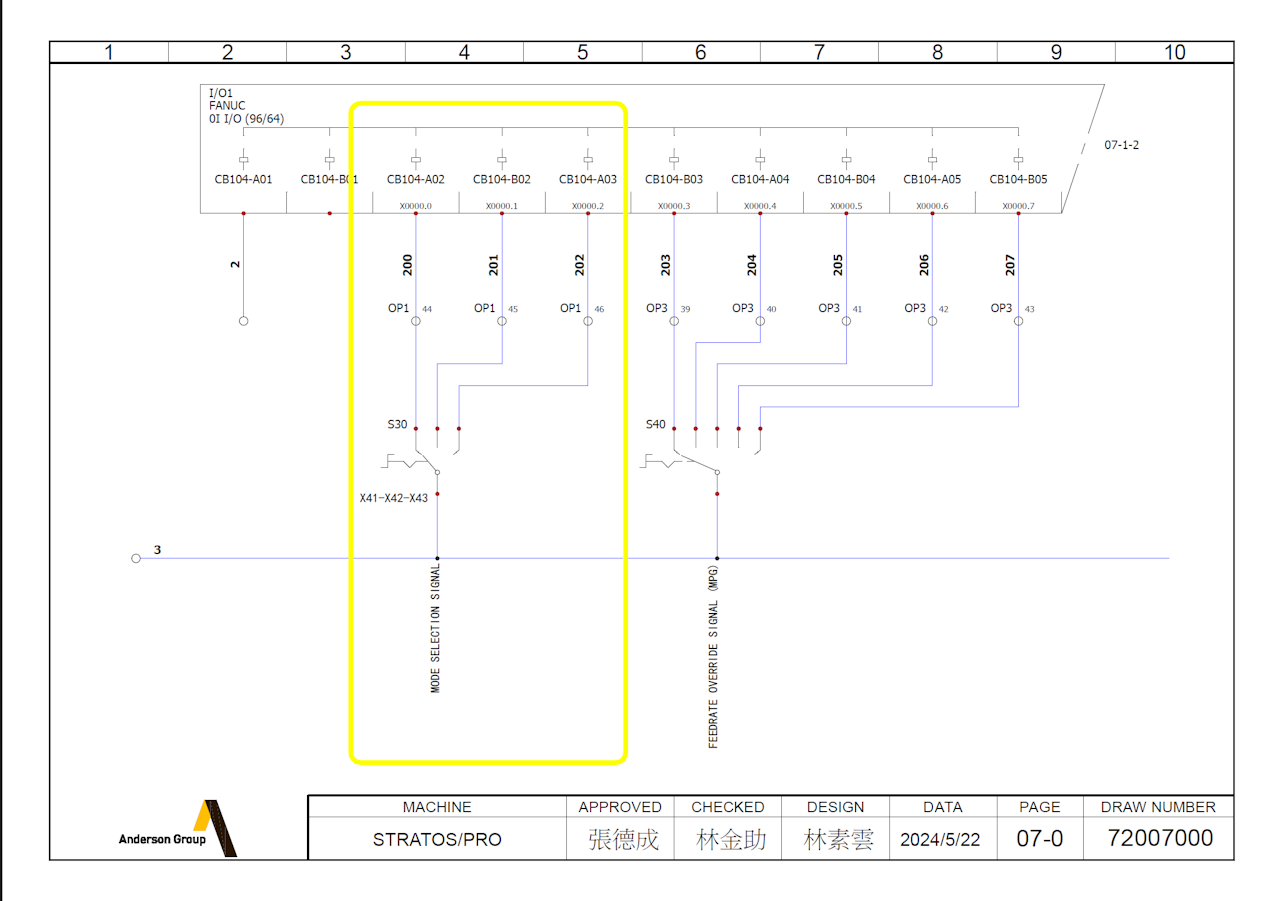

The mode select dial sends inputs to the control that determine the machine mode based on the combined inputs of the three signals. Check your schematic to ensure accurate information. Typically, this is page 7-0 as shown in the example (IMG 2).
