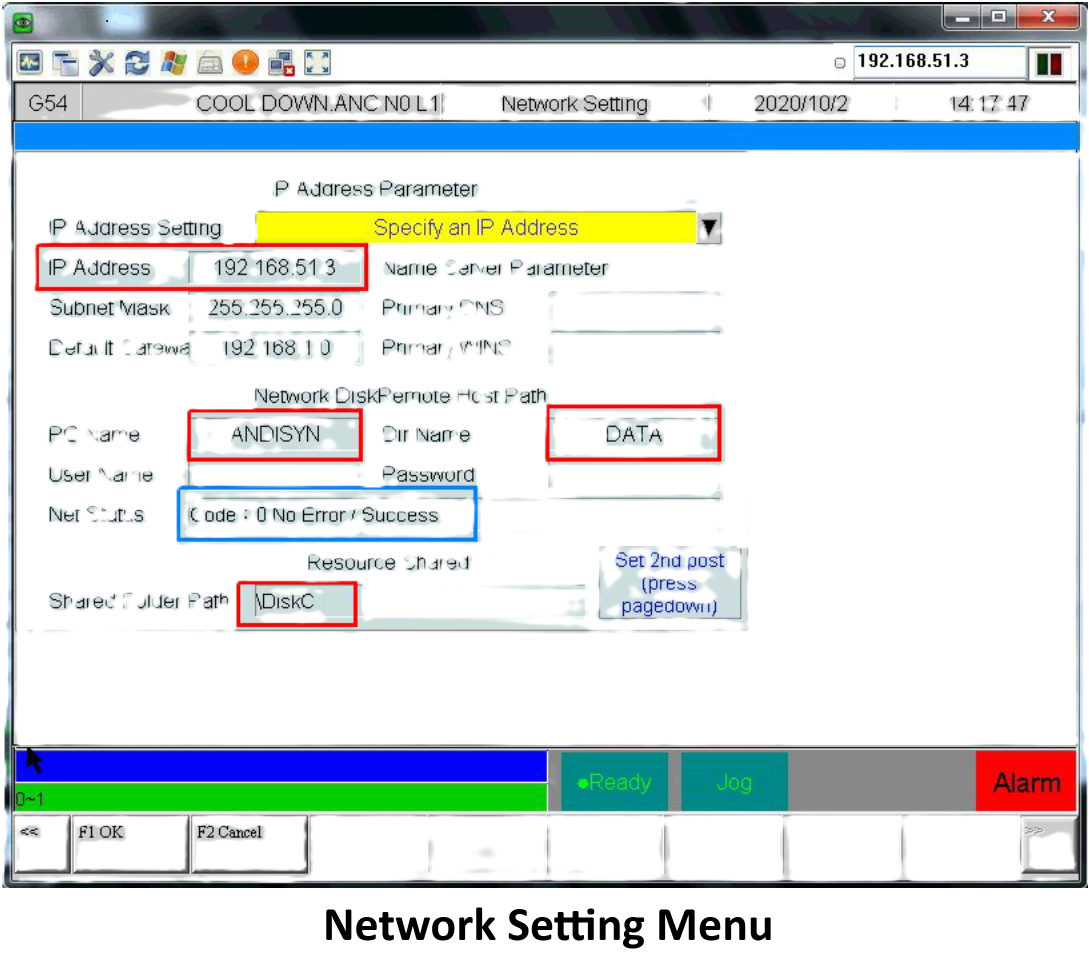

Syntec Network Setting menu:

IP Address: the IP address assigned to the Syntec control.
(Default "192.168.51.3")
PC Name: Syntec will follow the PC name to poll the shared folder.
(Default "ANDISYN")
Dir Name: the shared folder on the PC for stored NC programs.
(Default after serial number FAANCTC08000"Ncfile")
Shared Folder Path: the path for the assigned shared folder inside the PC. (Default path is "\DiskC")
Please verify there is a shared folder inside the PC at the path above.
The shared folder must have the same name as the "Dir Name" setting in the Network Setting menu.
Net Status: this “Code” identifies the connection status of the network connection between the Syntec control and the PC. (Default is "0")
If this code is ever not "0", make note of the current code for troubleshooting
