The calibration data will be stored in the macro table starting with macro variable 900. The length calibration will be stored in the height offset set for the probe.

#900 X-axis stylus ball radius (XRAD)

#901 Y-axis stylus ball radius (YRAD)

#902 X-axis stylus offset (XOFF)

#903 Y-axis stylus offset (YOFF)

#910 30° stylus ball radius (VRAD)

#911 60° stylus ball radius (VRAD)

#912 120° stylus ball radius (VRAD)

#913 150° stylus ball radius (VRAD)

#914 210° stylus ball radius (VRAD)

#915 240° stylus ball radius (VRAD)

#916 300° stylus ball radius (VRAD)

#917 330° stylus ball radius (VRAD)

#918 Z calibration radius used for 3D vector measuring (ZRAD).

#919 Nominal stylus radius used for 3D vector measuring (SRAD).

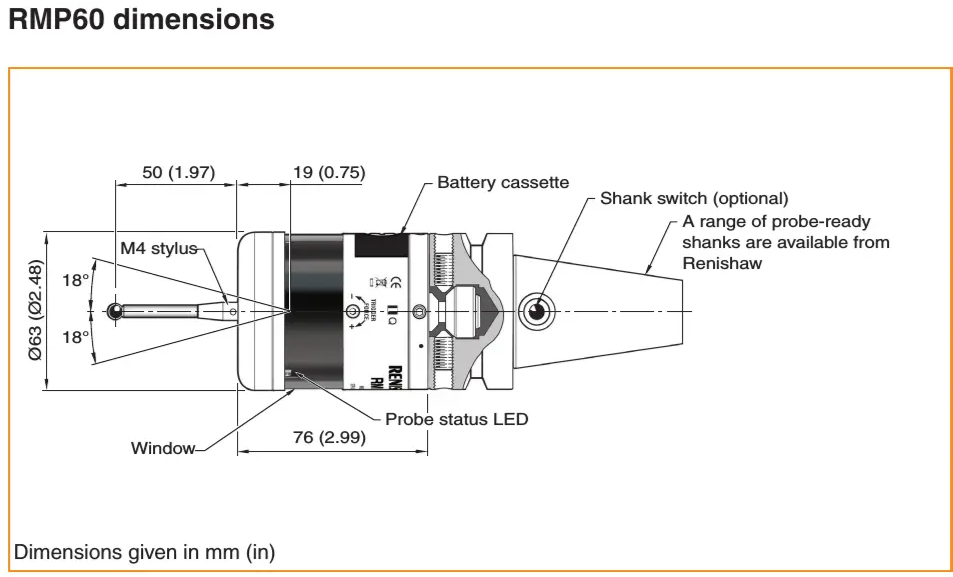

RMP60 Using Renishaw Set And Inspect
