Oil Misting systems for SK30 Spindles

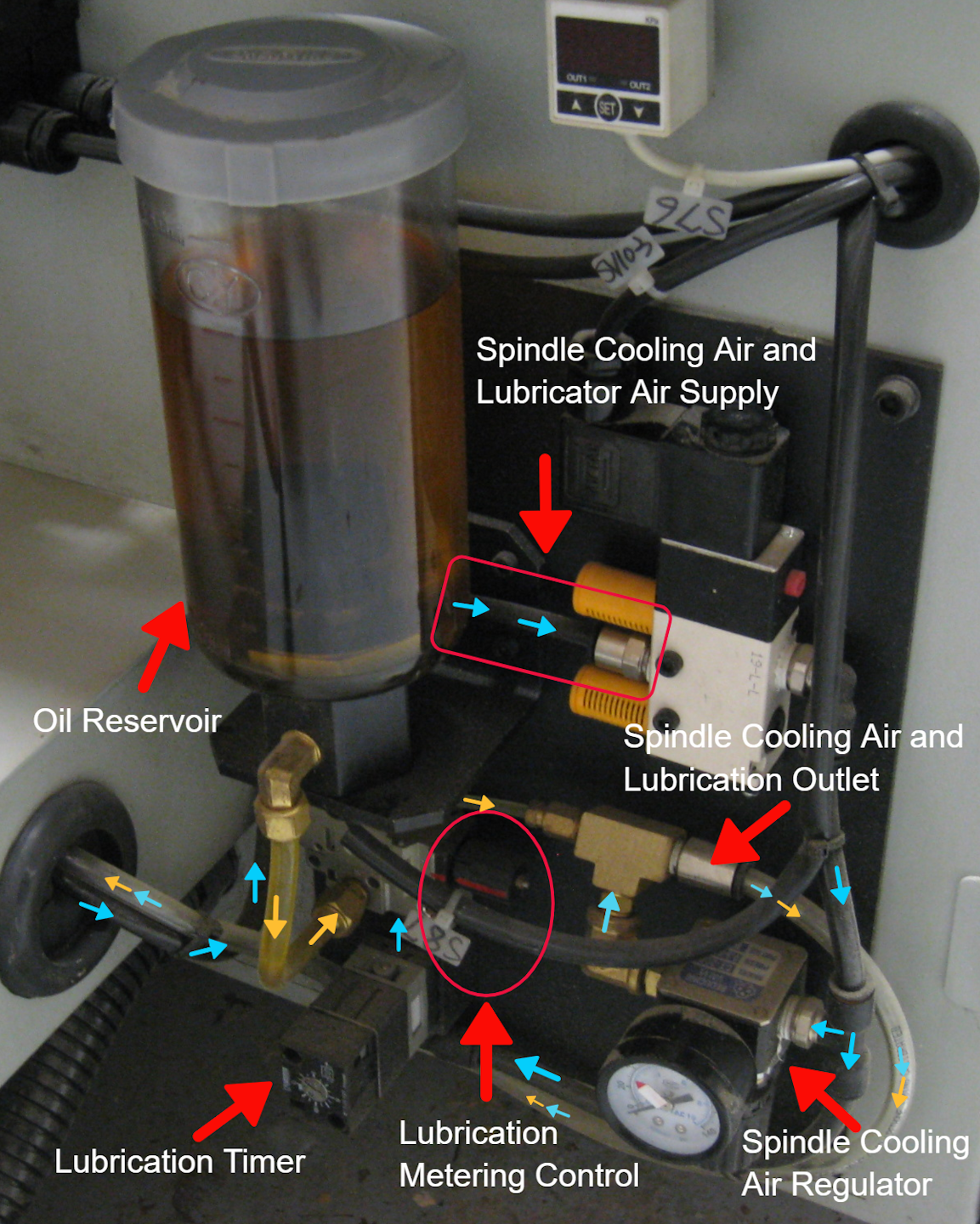

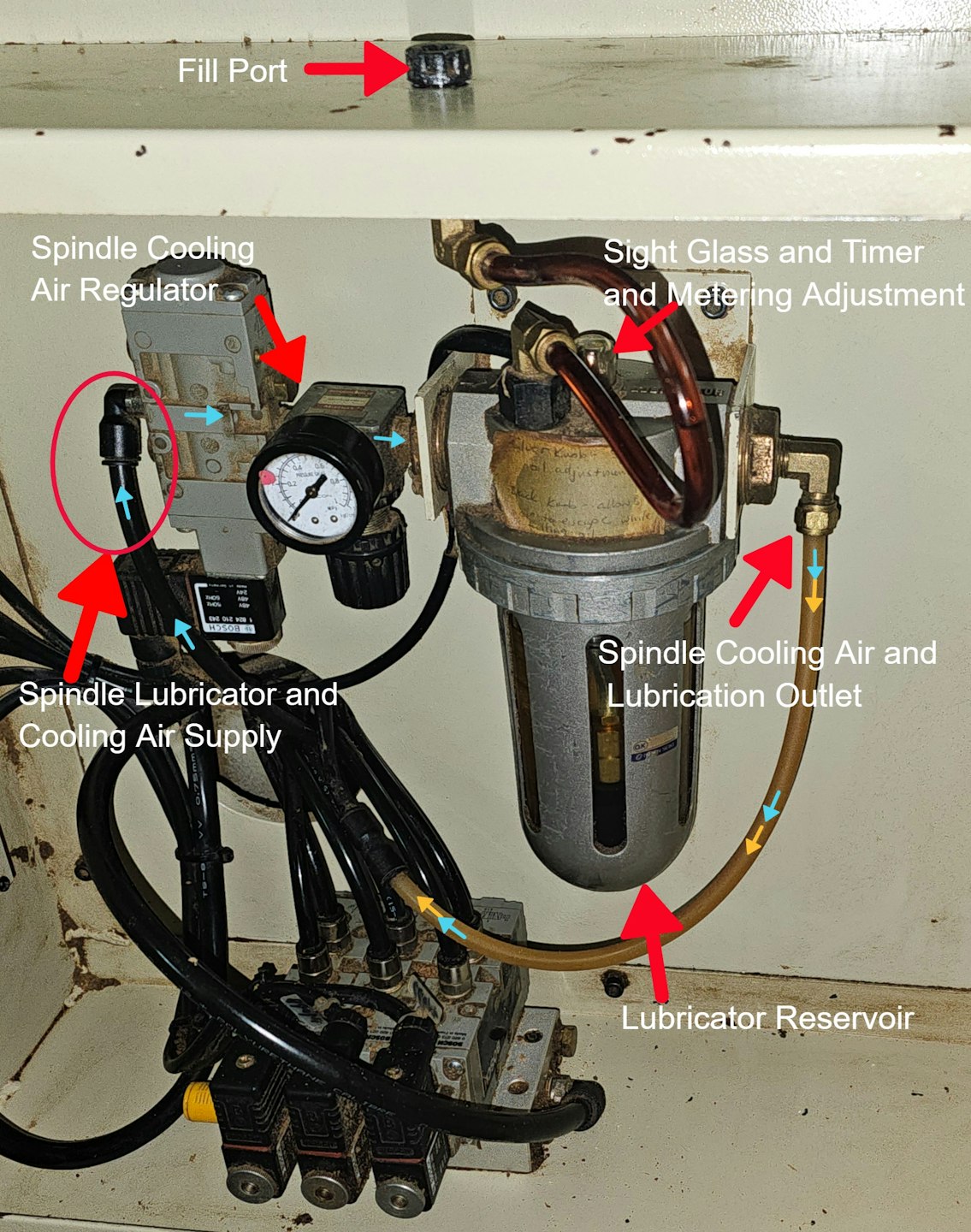

Anderson SK30 spindles use steel bearings that are cooled by air and lubricated by oil. The oil is misted into the bearings with the cooling air through use of a misting unit. There have been two different itterations of this system over the years. Although they work the same there are a few differences in adjustment and maintenance. this guide will familiarize you with both units. The first picture is the current misting unit and the second picture is the original legacy misting unit.
