How do I know if a Fuse is Bad?

If your machine won't power up or if you have a machine component that won't work it is likely you popped a fuse or a breaker is tripped. This can happen from low incoming voltage to the machine or a machine component failure causing excessive amp load on the system. They are a protection for the machine.

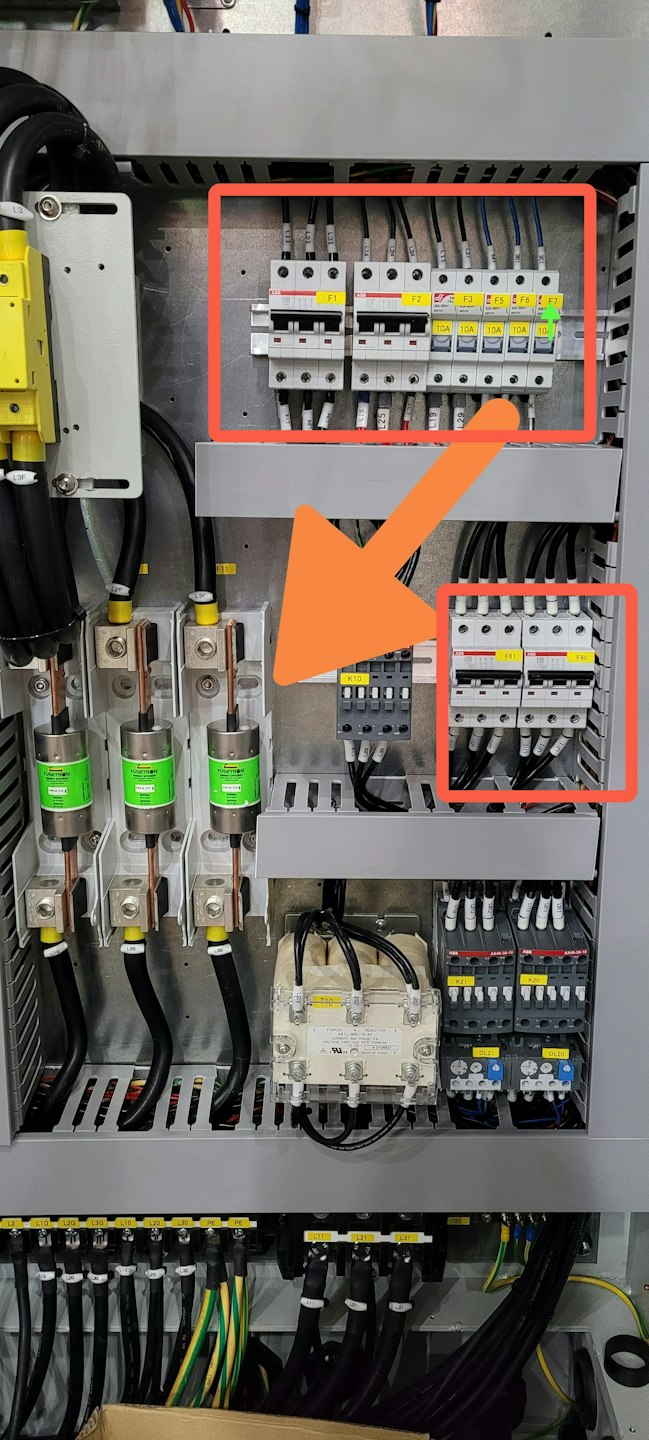

1. The Arrow is pointing at the large green fuses. They are your incoming power source fuses.

2. The boxes are surrounding other fuses and breakers in the machine that go to individual components or systems.
