Dipole Settings file of the Syntec 10MF Control

Dipole Settings file of the Syntec 10MF Control

Giben

The Syntec control acts as a server for the PC to login to for transferring NC programs and/or commands for the control to run these transferred commands or programs.

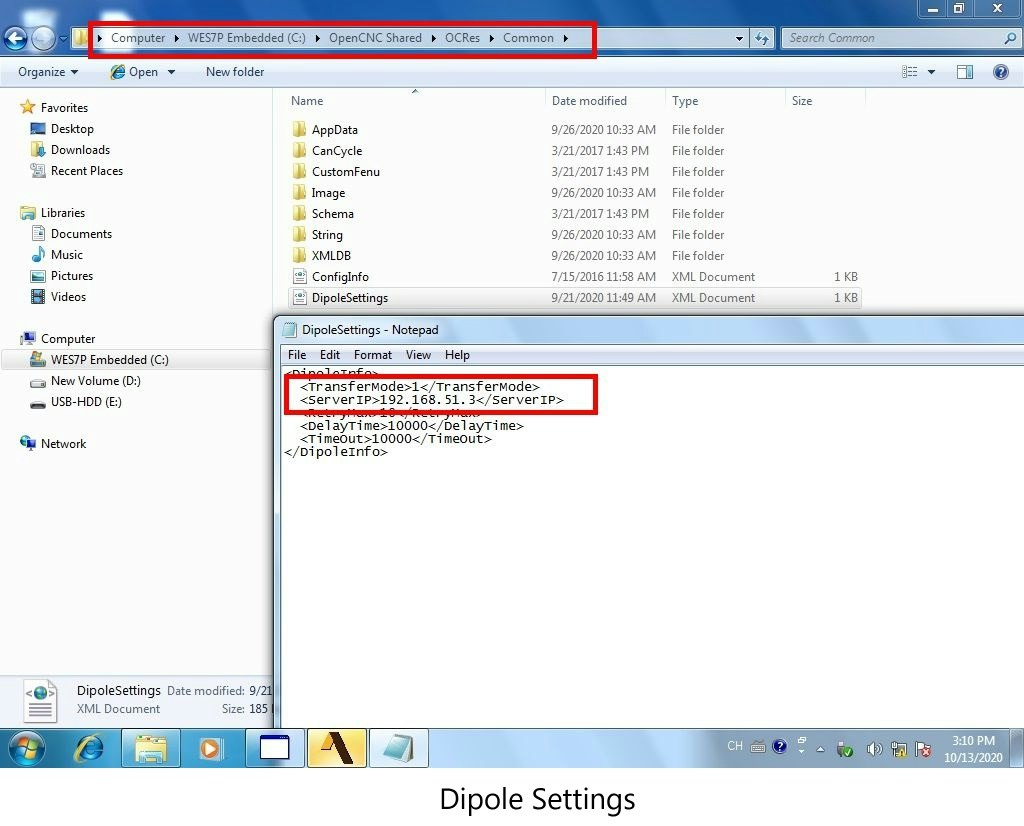

Dipolesettings.xml: This file is the main communication component for the PC to connect to the Syntec 10MF control.

TransferMode: “1” (Default "1")
If the control is shut down without warning, at reboot the Syntec control may not re-connect successfully. Check that Transfer Mode setting is set as "1" in "DipoleSettings.XML". This mode setting may default back to “0”.

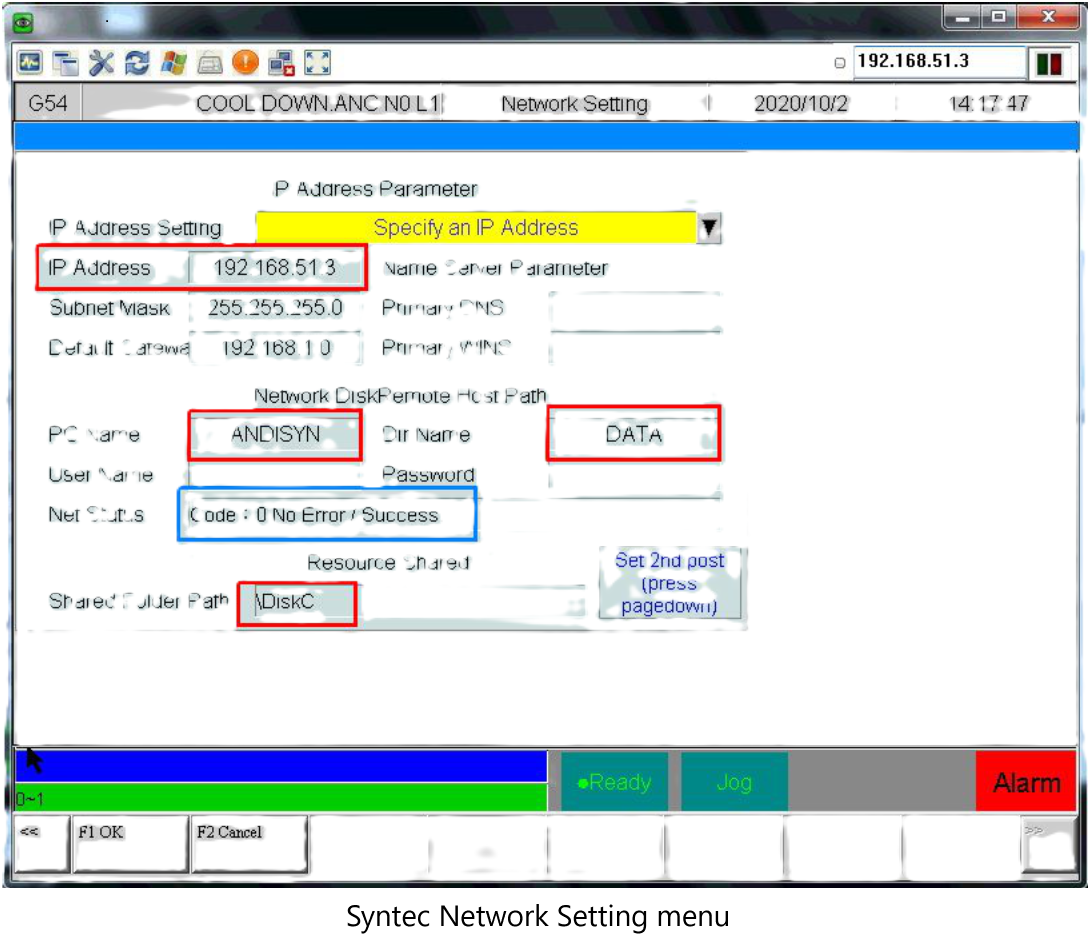

Server IP: This must be set to the same as the IP address of the Syntec control on the Network Setting menu. See second picture
